Introduction:
Specification :
Dimension: 386.83x 241.57 x 12.5mm
Panel Size: 15.6 inches
Display Ratio: 16:9
Active Area: 344.16x193.59 mm
Resolution: 1920*1080
Pixel Pitch: 0.179253 x0.179253mm
White Luminance: 220cd/m2
Contrast Ratio: 800:1
Color: 16.7M colors
Viewing Angle: Horizontal 170°, Vertical 170° @CR≥10
Surface Treatment: Tempered Glass 6H
Full-Lamination: Yes
Response Time: 30ms
Colour Gamut: 92%NTSC Above
Touch Specification:
Touch Solution: Wireless Passive Electromagnetic Touch
Digitizer Resolution: 5080 LPI
Sensor Height: 0-10mm
Report Rate Speed: 266 RPS
Pressure (Full Level): 16384 Level
Pen tilt: ±60°
Accuracy: ±0.5mm(Center), ±2mm(Edge)
Pen Specification
Type: S01 Short stroke hard Pen
Pen Tip: Switch Freely
Pen Button: 2
Weight: 10g
Pressure (Full Level): 16384 Level
Model: S01
Other Specification
Power Supply Type: USB 5V 2A
Power Consumption: 7.5W

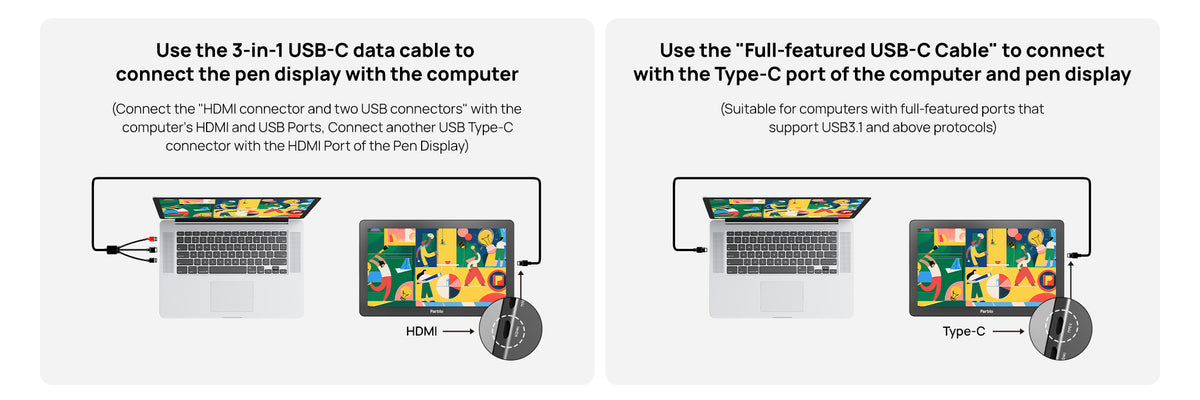

Touch Interface: 3 in 1 USB-C, USB TYPE-C
Power button: Yes
Shielding material: Silicon steel sheet
Product Weight: 1060g
Color: dark gray
Material: Aluminum alloy
Express Key: No
Dial Ring: No

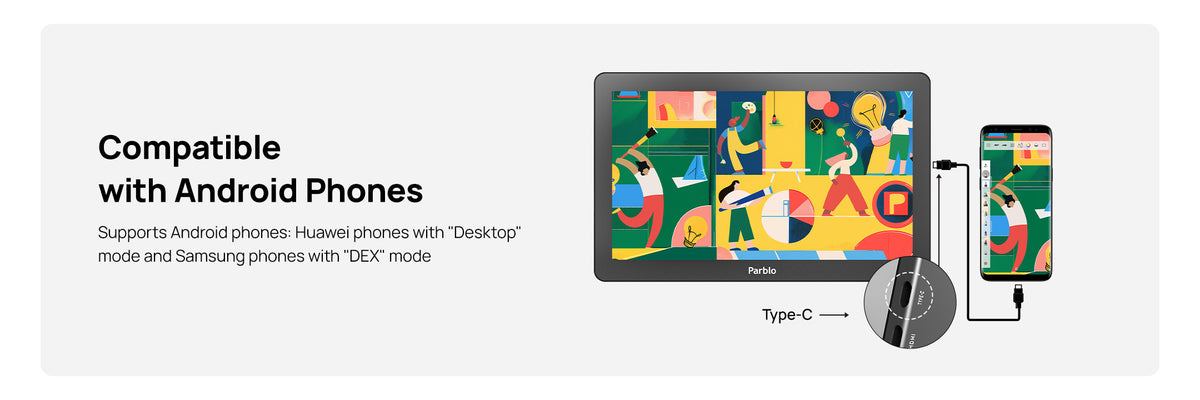

Support OS: Windows 8/10/11; Mac OSX 10.12. or above Android OS 10.0 above
Operation Temp/Humidity: 0-60 Celsius degree/20-80%
Storage Temp/Humidity: -10-80 Celsius degree/ 10-90%
Certification: CE, FCC, RoHS
Package Includes :
1 x Coast16 Pro Gen2 graphic monitor
1x 1x S01 short stroke hard pen with nib clip
1x 3 in 1 USB Cable
1x USB Type-C cable
1 x Power extension cord
8x Nibs
1 x Pen Bag
1 x Drawing glove
1 x Cleaning cloth
1 x Instruction
